Sachmle

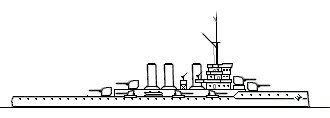

San Martin Class, NUS Armoured Cruiser laid down 1895

Image based on parts by Wes Wilson, modified by me.
4 ships in class: San Martin(Scrapped), Belgrano(Scrapped), Garibaldi(To Greece), Pueyrredon(To Greece).

Displacement:
   7,006 t light; 7,275 t standard; 8,318 t normal; 9,152 t full load

Dimensions: Length overall / water x beam x draught
   325.00 ft / 325.00 ft x 58.00 ft x 26.00 ft (normal load)
   99.06 m / 99.06 m x 17.68 m  x 7.92 m

Armament:
      4 - 8.00" / 203 mm guns (2x2 guns), 250.00lbs / 113.40kg shells, 1895 Model
     Breech loading guns in turrets (on barbettes)
     on centreline ends, evenly spread
      6 - 6.00" / 152 mm guns in single mounts, 100.00lbs / 45.36kg shells, 1895 Model
     Breech loading guns in casemate mounts
     on side, all amidships
     6 guns in hull casemates - Limited use in all but light seas
      10 - 3.00" / 76.2 mm guns in single mounts, 12.00lbs / 5.44kg shells, 1895 Model
     Quick firing guns in deck mounts
     on side, evenly spread, all raised mounts
   Weight of broadside 1,720 lbs / 780 kg
   Shells per gun, main battery: 100
   4 - 18.0" / 457.2 mm below water torpedoes

Armour:
   - Belts:      Width (max)   Length (avg)      Height (avg)
   Main:   8.00" / 203 mm   275.00 ft / 83.82 m   8.00 ft / 2.44 m
   Ends:   4.00" / 102 mm     50.00 ft / 15.24 m   8.00 ft / 2.44 m
   Upper:   6.00" / 152 mm   275.00 ft / 83.82 m   6.00 ft / 1.83 m
     Main Belt covers 130 % of normal length

   - Gun armour:   Face (max)   Other gunhouse (avg)   Barbette/hoist (max)
   Main:   8.00" / 203 mm   6.00" / 152 mm      8.00" / 203 mm
   2nd:   2.00" / 51 mm         -         4.00" / 102 mm
   3rd:   1.00" / 25 mm         -               -

   - Armour deck: 1.00" / 25 mm, Conning tower: 8.00" / 203 mm

Machinery:
   Coal fired boilers, complex reciprocating steam engines,
   Direct drive, 4 shafts, 16,272 ihp / 12,139 Kw = 20.00 kts
   Range 8,000nm at 10.00 kts
   Bunker at max displacement = 1,876 tons (100% coal)

Complement:
   435 - 566

Cost:
   £0.821 million / $3.284 million

Distribution of weights at normal displacement:
   Armament: 226 tons, 2.7 %
   Armour: 1,920 tons, 23.1 %
      - Belts: 1,199 tons, 14.4 %
      - Torpedo bulkhead: 0 tons, 0.0 %
      - Armament: 396 tons, 4.8 %
      - Armour Deck: 254 tons, 3.0 %
      - Conning Tower: 71 tons, 0.9 %
   Machinery: 2,758 tons, 33.2 %
   Hull, fittings & equipment: 2,072 tons, 24.9 %
   Fuel, ammunition & stores: 1,312 tons, 15.8 %
   Miscellaneous weights: 30 tons, 0.4 %

Overall survivability and seakeeping ability:
   Survivability (Non-critical penetrating hits needed to sink ship):
     4,431 lbs / 2,010 Kg = 17.3 x 8.0 " / 203 mm shells or 0.9 torpedoes
   Stability (Unstable if below 1.00): 1.21
   Metacentric height 3.1 ft / 1.0 m
   Roll period: 13.8 seconds
   Steadiness   - As gun platform (Average = 50 %): 60 %
         - Recoil effect (Restricted arc if above 1.00): 0.26
   Seaboat quality  (Average = 1.00): 1.13

Hull form characteristics:
   Hull has raised forecastle, rise forward of midbreak
   Block coefficient: 0.594
   Length to Beam Ratio: 5.60 : 1
   'Natural speed' for length: 18.03 kts
   Power going to wave formation at top speed: 59 %
   Trim (Max stability = 0, Max steadiness = 100): 53
   Bow angle (Positive = bow angles forward): -14.00 degrees
   Stern overhang: -8.00 ft / -2.44 m
   Freeboard (% = measuring location as a percentage of overall length):
      - Stem:      20.00 ft / 6.10 m
      - Forecastle (35 %):   20.00 ft / 6.10 m (19.00 ft / 5.79 m aft of break)
      - Mid (50 %):      19.00 ft / 5.79 m (10.00 ft / 3.05 m aft of break)
      - Quarterdeck (15 %):   10.00 ft / 3.05 m
      - Stern:      10.00 ft / 3.05 m
      - Average freeboard:   14.85 ft / 4.53 m

Ship space, strength and comments:
   Space   - Hull below water (magazines/engines, low = better): 128.1 %
      - Above water (accommodation/working, high = better): 68.0 %
   Waterplane Area: 13,709 Square feet or 1,274 Square metres
   Displacement factor (Displacement / loading): 90 %
   Structure weight / hull surface area: 95 lbs/sq ft or 463 Kg/sq metre
   Hull strength (Relative):
      - Cross-sectional: 0.89
      - Longitudinal: 2.75
      - Overall: 1.00
   Hull space for machinery, storage, compartmentation is cramped
   Room for accommodation and workspaces is cramped
"All treaties between great states cease to be binding when they come in conflict with the struggle for existence."
Otto von Bismarck

"Give me a woman who loves beer and I will conquer the world."
Kaiser Wilhelm

"If stupidity were painfull I would be deaf from all the screaming." Sam A. Grim

Sachmle

#1

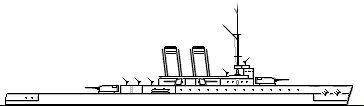

Paraguay Class, NUS - Italian Built Cruiser laid down 1901

Image based on parts by Wes Wilson, modified by me.
3 ships in class - Paraguay, Cordillera, and San Pedro

Displacement:
   4,917 t light; 5,121 t standard; 5,600 t normal; 5,983 t full load

Dimensions: Length overall / water x beam x draught
   355.63 ft / 350.00 ft x 50.00 ft x 21.00 ft (normal load)
   108.40 m / 106.68 m x 15.24 m  x 6.40 m

Armament:
     4 - 8.00" / 203 mm guns (2x2 guns), 256.00lbs / 116.12kg shells, 1895 Model
     Breech loading guns in turrets (on barbettes)
     on centreline ends, evenly spread
     4 - 3.00" / 76.2 mm guns in single mounts, 13.50lbs / 6.12kg shells, 1895 Model
     Quick firing guns in deck mounts
     on side, all amidships
     10 - 1.00" / 25.4 mm guns in single mounts, 0.50lbs / 0.23kg shells, 1896 Model
     Machine guns in deck mounts
     on side, evenly spread
   Weight of broadside 1,083 lbs / 491 kg
   Shells per gun, main battery: 150
   4 - 18.0" / 457.2 mm above water torpedoes

Armour:
  - Belts:      Width (max)   Length (avg)      Height (avg)
   Main:   6.00" / 152 mm   283.00 ft / 86.26 m   9.00 ft / 2.74 m
   Ends:   3.00" / 76 mm     67.00 ft / 20.42 m   9.00 ft / 2.74 m
   Upper:   1.00" / 25 mm   283.00 ft / 86.26 m   8.00 ft / 2.44 m
     Main Belt covers 124 % of normal length

  - Gun armour:   Face (max)   Other gunhouse (avg)   Barbette/hoist (max)
   Main:   6.00" / 152 mm   2.00" / 51 mm      4.00" / 102 mm
   2nd:   1.00" / 25 mm   1.00" / 25 mm            -

  - Armour deck: 1.00" / 25 mm, Conning tower: 4.00" / 102 mm

Machinery:
   Coal fired boilers, complex reciprocating steam engines,
   Direct drive, 3 shafts, 11,722 ihp / 8,745 Kw = 20.00 kts
   Range 5,000nm at 10.00 kts
   Bunker at max displacement = 862 tons (100% coal)

Complement:
   323 - 420

Cost:
   £0.538 million / $2.153 million

Distribution of weights at normal displacement:
   Armament: 135 tons, 2.4 %
   Armour: 1,223 tons, 21.8 %
      - Belts: 790 tons, 14.1 %
      - Torpedo bulkhead: 0 tons, 0.0 %
      - Armament: 183 tons, 3.3 %
      - Armour Deck: 222 tons, 4.0 %
      - Conning Tower: 27 tons, 0.5 %
   Machinery: 1,803 tons, 32.2 %
   Hull, fittings & equipment: 1,706 tons, 30.5 %
   Fuel, ammunition & stores: 683 tons, 12.2 %
   Miscellaneous weights: 50 tons, 0.9 %
               - 25 ton W/T
               - 20 tons Torpedos/reloads and equipment
Overall survivability and seakeeping ability:
   Survivability (Non-critical penetrating hits needed to sink ship):
     4,031 lbs / 1,829 Kg = 15.7 x 8.0 " / 203 mm shells or 0.8 torpedoes
   Stability (Unstable if below 1.00): 1.26
   Metacentric height 2.7 ft / 0.8 m
   Roll period: 12.8 seconds
   Steadiness   - As gun platform (Average = 50 %): 70 %
         - Recoil effect (Restricted arc if above 1.00): 0.44
   Seaboat quality  (Average = 1.00): 1.59

Hull form characteristics:
   Hull has rise forward of midbreak
   Block coefficient: 0.533
   Length to Beam Ratio: 7.00 : 1
   'Natural speed' for length: 18.71 kts
   Power going to wave formation at top speed: 51 %
   Trim (Max stability = 0, Max steadiness = 100): 44
   Bow angle (Positive = bow angles forward): 9.00 degrees
   Stern overhang: 2.46 ft / 0.75 m
   Freeboard (% = measuring location as a percentage of overall length):
      - Stem:      20.00 ft / 6.10 m
      - Forecastle (10 %):   20.00 ft / 6.10 m
      - Mid (50 %):      20.00 ft / 6.10 m (12.00 ft / 3.66 m aft of break)
      - Quarterdeck (10 %):   12.00 ft / 3.66 m
      - Stern:      12.00 ft / 3.66 m
      - Average freeboard:   16.00 ft / 4.88 m
   Ship tends to be wet forward

Ship space, strength and comments:
   Space   - Hull below water (magazines/engines, low = better): 124.1 %
      - Above water (accommodation/working, high = better): 100.3 %
   Waterplane Area: 12,024 Square feet or 1,117 Square metres
   Displacement factor (Displacement / loading): 94 %
   Structure weight / hull surface area: 85 lbs/sq ft or 414 Kg/sq metre
   Hull strength (Relative):
      - Cross-sectional: 0.90
      - Longitudinal: 2.47
      - Overall: 1.00
   Hull space for machinery, storage, compartmentation is cramped
   Room for accommodation and workspaces is adequate
   Ship has slow, easy roll, a good, steady gun platform
   Excellent seaboat, comfortable, can fire her guns in the heaviest weather
Ships built in Italia, armed in NUS
"All treaties between great states cease to be binding when they come in conflict with the struggle for existence."
Otto von Bismarck

"Give me a woman who loves beer and I will conquer the world."
Kaiser Wilhelm

"If stupidity were painfull I would be deaf from all the screaming." Sam A. Grim

Sachmle

#2

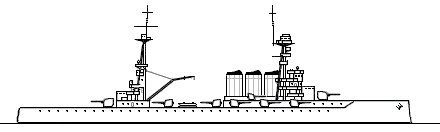

Nueva (ex-Unión) Class, NUS Protected Cruiser laid down 1909

Image based on parts by Wes Wilson, modified by me.

6 ships in class: Nueva Alborada(ex-Unión), Nueva Germania, Nueva Italia, Nueva Londres, Nueva 5(under construction), Nueva 6(under construction)

Displeased with the performance of the Italian built cruisers La Marina de Guerra has ordered a new design earlier than expected. Without the armoured sides and with the latest turbine technology these new cruisers are capable of 27kts, making them, at the moment, the fastest non-light vessels in the navy.

Displacement:
   4,400 t light; 4,561 t standard; 5,419 t normal; 6,105 t full load

Dimensions: Length overall / water x beam x draught
   393.00 ft / 393.00 ft x 56.00 ft x 18.10 ft (normal load)
   119.79 m / 119.79 m x 17.07 m  x 5.52 m

Armament:
     2 - 6.00" / 152 mm guns in single mounts, 108.00lbs / 48.99kg shells, 1909 Model
     Quick firing guns in deck mounts with hoists
     on centreline ends, evenly spread
     10 - 4.00" / 102 mm guns in single mounts, 32.00lbs / 14.51kg shells, 1909 Model
     Quick firing guns in deck mounts
     on side, evenly spread
     2 - 2.00" / 50.8 mm guns in single mounts, 4.00lbs / 1.81kg shells, 1909 Model
     Quick firing guns in deck mounts
     on side, evenly spread, all raised mounts
   Weight of broadside 544 lbs / 247 kg
   Shells per gun, main battery: 150
   4 - 18.0" / 457.2 mm above water torpedoes

Armour:
  - Gun armour:   Face (max)   Other gunhouse (avg)   Barbette/hoist (max)
   Main:   2.00" / 51 mm   2.00" / 51 mm            -
   2nd:   1.00" / 25 mm         -               -
   3rd:   1.00" / 25 mm         -               -

  - Armour deck: 2.00" / 51 mm, Conning tower: 6.00" / 152 mm

Machinery:
   Coal and oil fired boilers, steam turbines,
   Direct drive, 3 shafts, 35,995 shp / 26,852 Kw = 27.00 kts
   Range 7,000nm at 12.00 kts
   Bunker at max displacement = 1,545 tons (90% coal)

Complement:
   315 - 410

Cost:
   £0.461 million / $1.842 million

Distribution of weights at normal displacement:
   Armament: 68 tons, 1.3 %
   Armour: 614 tons, 11.3 %
      - Belts: 0 tons, 0.0 %
      - Torpedo bulkhead: 0 tons, 0.0 %
      - Armament: 43 tons, 0.8 %
      - Armour Deck: 531 tons, 9.8 %
      - Conning Tower: 40 tons, 0.7 %
   Machinery: 1,782 tons, 32.9 %
   Hull, fittings & equipment: 1,836 tons, 33.9 %
   Fuel, ammunition & stores: 1,019 tons, 18.8 %
   Miscellaneous weights: 100 tons, 1.8 %

Overall survivability and seakeeping ability:
   Survivability (Non-critical penetrating hits needed to sink ship):
     5,454 lbs / 2,474 Kg = 50.5 x 6.0 " / 152 mm shells or 1.0 torpedoes
   Stability (Unstable if below 1.00): 1.36
   Metacentric height 3.6 ft / 1.1 m
   Roll period: 12.4 seconds
   Steadiness   - As gun platform (Average = 50 %): 70 %
         - Recoil effect (Restricted arc if above 1.00): 0.13
   Seaboat quality  (Average = 1.00): 1.23

Hull form characteristics:
   Hull has rise forward of midbreak
   Block coefficient: 0.476
   Length to Beam Ratio: 7.02 : 1
   'Natural speed' for length: 19.82 kts
   Power going to wave formation at top speed: 62 %
   Trim (Max stability = 0, Max steadiness = 100): 57
   Bow angle (Positive = bow angles forward): -14.00 degrees
   Stern overhang: 0.00 ft / 0.00 m
   Freeboard (% = measuring location as a percentage of overall length):
      - Stem:      23.00 ft / 7.01 m
      - Forecastle (18 %):   23.00 ft / 7.01 m
      - Mid (50 %):      23.00 ft / 7.01 m (14.75 ft / 4.50 m aft of break)
      - Quarterdeck (18 %):   14.75 ft / 4.50 m
      - Stern:      14.75 ft / 4.50 m
      - Average freeboard:   18.88 ft / 5.75 m

Ship space, strength and comments:
   Space   - Hull below water (magazines/engines, low = better): 118.6 %
      - Above water (accommodation/working, high = better): 148.7 %
   Waterplane Area: 14,353 Square feet or 1,333 Square metres
   Displacement factor (Displacement / loading): 112 %
   Structure weight / hull surface area: 79 lbs/sq ft or 387 Kg/sq metre
   Hull strength (Relative):
      - Cross-sectional: 0.90
      - Longitudinal: 2.53
      - Overall: 1.00
   Hull space for machinery, storage, compartmentation is cramped
   Room for accommodation and workspaces is excellent
   Ship has slow, easy roll, a good, steady gun platform
   Good seaboat, rides out heavy weather easily
"All treaties between great states cease to be binding when they come in conflict with the struggle for existence."
Otto von Bismarck

"Give me a woman who loves beer and I will conquer the world."
Kaiser Wilhelm

"If stupidity were painfull I would be deaf from all the screaming." Sam A. Grim

Sachmle

#3
San Carlos de Bariloche class, NUS Cruiser laid down 1910 (Engine 1909)

Image based on parts by Wes Wilson, modified by me.

2 ships in class: San Carlos de Bariloche and Ciudad Jardín Lomas del Palomar.

Displacement:
   9,475 t light; 10,013 t standard; 11,490 t normal; 12,672 t full load

Dimensions: Length overall / water x beam x draught
   533.00 ft / 529.00 ft x 56.00 ft x 22.00 ft (normal load)
   162.46 m / 161.24 m x 17.07 m  x 6.71 m

Armament:
     6 - 9.20" / 234 mm guns (3x2 guns), 380.00lbs / 172.37kg shells, 1910 Model
     Breech loading guns in turrets (on barbettes)
     on centreline ends, majority aft
     8 - 6.00" / 152 mm guns in single mounts, 108.00lbs / 48.99kg shells, 1906 Model
     Quick firing guns in casemate mounts
     on side, all forward
     8 guns in hull casemates - Limited use in heavy seas
     4 - 3.00" / 76.2 mm guns in single mounts, 13.50lbs / 6.12kg shells, 1905 Model
     Quick firing guns in deck mounts
     on side, evenly spread
   Weight of broadside 3,198 lbs / 1,451 kg
   Shells per gun, main battery: 165

Armour:
  - Belts:      Width (max)   Length (avg)      Height (avg)
   Main:   8.00" / 203 mm   320.00 ft / 97.54 m   14.00 ft / 4.27 m
   Ends:   1.00" / 25 mm   209.00 ft / 63.70 m   14.00 ft / 4.27 m
   Upper:   4.00" / 102 mm   320.00 ft / 97.54 m   8.00 ft / 2.44 m
     Main Belt covers 93 % of normal length

  - Gun armour:   Face (max)   Other gunhouse (avg)   Barbette/hoist (max)
   Main:   8.00" / 203 mm   6.00" / 152 mm      8.00" / 203 mm
   2nd:   4.00" / 102 mm   2.00" / 51 mm      1.00" / 25 mm
   3rd:   1.00" / 25 mm   1.00" / 25 mm            -

  - Armour deck: 1.50" / 38 mm, Conning tower: 6.00" / 152 mm

Machinery:
   Coal and oil fired boilers, steam turbines,
   Direct drive, 4 shafts, 32,238 shp / 24,049 Kw = 24.00 kts
   Range 7,500nm at 12.00 kts
   Bunker at max displacement = 2,659 tons (90% coal)

Complement:
   554 - 721

Cost:
   £0.897 million / $3.587 million

Distribution of weights at normal displacement:
   Armament: 407 tons, 3.5 %
   Armour: 3,531 tons, 30.7 %
      - Belts: 2,068 tons, 18.0 %
      - Torpedo bulkhead: 0 tons, 0.0 %
      - Armament: 786 tons, 6.8 %
      - Armour Deck: 611 tons, 5.3 %
      - Conning Tower: 66 tons, 0.6 %
   Machinery: 1,596 tons, 13.9 %
   Hull, fittings & equipment: 3,816 tons, 33.2 %
   Fuel, ammunition & stores: 2,015 tons, 17.5 %
   Miscellaneous weights: 125 tons, 1.1 %

Overall survivability and seakeeping ability:
   Survivability (Non-critical penetrating hits needed to sink ship):
     16,833 lbs / 7,635 Kg = 43.2 x 9.2 " / 234 mm shells or 2.1 torpedoes
   Stability (Unstable if below 1.00): 1.13
   Metacentric height 2.6 ft / 0.8 m
   Roll period: 14.5 seconds
   Steadiness   - As gun platform (Average = 50 %): 70 %
         - Recoil effect (Restricted arc if above 1.00): 0.87
   Seaboat quality  (Average = 1.00): 1.58

Hull form characteristics:
   Hull has rise forward of midbreak
   Block coefficient: 0.617
   Length to Beam Ratio: 9.45 : 1
   'Natural speed' for length: 23.00 kts
   Power going to wave formation at top speed: 48 %
   Trim (Max stability = 0, Max steadiness = 100): 44
   Bow angle (Positive = bow angles forward): -5.00 degrees
   Stern overhang: 4.00 ft / 1.22 m
   Freeboard (% = measuring location as a percentage of overall length):
      - Stem:      23.00 ft / 7.01 m
      - Forecastle (20 %):   23.00 ft / 7.01 m
      - Mid (55 %):      23.00 ft / 7.01 m (15.00 ft / 4.57 m aft of break)
      - Quarterdeck (15 %):   15.00 ft / 4.57 m
      - Stern:      15.00 ft / 4.57 m
      - Average freeboard:   19.40 ft / 5.91 m
   Ship tends to be wet forward

Ship space, strength and comments:
   Space   - Hull below water (magazines/engines, low = better): 74.6 %
      - Above water (accommodation/working, high = better): 146.1 %
   Waterplane Area: 22,014 Square feet or 2,045 Square metres
   Displacement factor (Displacement / loading): 114 %
   Structure weight / hull surface area: 105 lbs/sq ft or 513 Kg/sq metre
   Hull strength (Relative):
      - Cross-sectional: 0.95
      - Longitudinal: 1.57
      - Overall: 1.00
   Hull space for machinery, storage, compartmentation is excellent
   Room for accommodation and workspaces is excellent
   Ship has slow, easy roll, a good, steady gun platform
   Excellent seaboat, comfortable, can fire her guns in the heaviest weather

25 tons for Marconi
100 tons reserve weight
"All treaties between great states cease to be binding when they come in conflict with the struggle for existence."
Otto von Bismarck

"Give me a woman who loves beer and I will conquer the world."
Kaiser Wilhelm

"If stupidity were painfull I would be deaf from all the screaming." Sam A. Grim

Sachmle

#4
San Luis Class, NUS Protected Cruiser laid down 1892

Image based on parts by Wes Wilson, modified by me.

5 ships in class: San Luis, La Argentina, Buenos Aires(Sold to Italy), Patagonia(Sold to Italy), Patria(Scrapped).

Displacement:
   4,207 t light; 4,391 t standard; 5,223 t normal; 5,890 t full load

Dimensions: Length overall / water x beam x draught
   300.00 ft / 300.00 ft x 48.00 ft x 23.00 ft (normal load)
   91.44 m / 91.44 m x 14.63 m  x 7.01 m

Armament:
      4 - 6.00" / 152 mm guns in single mounts, 108.00lbs / 48.99kg shells, 1892 Model
     Quick firing guns in deck mounts with hoists
     on centreline ends, evenly spread, 2 raised mounts - superfiring
      6 - 4.00" / 102 mm guns (4 mounts), 32.00lbs / 14.51kg shells, 1892 Model
     Quick firing guns in deck mounts
     on side, evenly spread
      6 - 2.00" / 50.8 mm guns (4 mounts), 4.00lbs / 1.81kg shells, 1892 Model
     Quick firing guns in deck mounts
     on side, evenly spread, all raised mounts
      4 - 1.00" / 25.4 mm guns in single mounts, 0.50lbs / 0.23kg shells, 1892 Model
     Machine guns in deck mounts
     on side ends, evenly spread, all raised mounts - superfiring
   Weight of broadside 650 lbs / 295 kg
   Shells per gun, main battery: 200
   4 - 18.0" / 457.2 mm above water torpedoes, 2 - 18.0" / 457.2 mm submerged torpedo tubes

Armour:
   - Gun armour:   Face (max)   Other gunhouse (avg)   Barbette/hoist (max)
   Main:   1.00" / 25 mm         -               -
   2nd:   0.50" / 13 mm         -               -
   3rd:   0.50" / 13 mm         -               -

   - Armour deck: 2.00" / 51 mm, Conning tower: 8.00" / 203 mm

Machinery:
   Coal fired boilers, complex reciprocating steam engines,
   Direct drive, 4 shafts, 13,260 ihp / 9,892 Kw = 20.40 kts
   Range 8,000nm at 10.00 kts
   Bunker at max displacement = 1,499 tons (100% coal)

Complement:
   306 - 399

Cost:
   £0.547 million / $2.188 million

Distribution of weights at normal displacement:
   Armament: 81 tons, 1.6 %
   Armour: 448 tons, 8.6 %
      - Belts: 0 tons, 0.0 %
      - Torpedo bulkhead: 0 tons, 0.0 %
      - Armament: 23 tons, 0.4 %
      - Armour Deck: 373 tons, 7.1 %
      - Conning Tower: 52 tons, 1.0 %
   Machinery: 2,368 tons, 45.3 %
   Hull, fittings & equipment: 1,260 tons, 24.1 %
   Fuel, ammunition & stores: 1,016 tons, 19.5 %
   Miscellaneous weights: 50 tons, 1.0 %

Overall survivability and seakeeping ability:
   Survivability (Non-critical penetrating hits needed to sink ship):
     1,706 lbs / 774 Kg = 15.8 x 6.0 " / 152 mm shells or 0.5 torpedoes
   Stability (Unstable if below 1.00): 1.39
   Metacentric height 2.9 ft / 0.9 m
   Roll period: 11.7 seconds
   Steadiness   - As gun platform (Average = 50 %): 60 %
         - Recoil effect (Restricted arc if above 1.00): 0.16
   Seaboat quality  (Average = 1.00): 1.06

Hull form characteristics:
   Hull has raised forecastle
   Block coefficient: 0.552
   Length to Beam Ratio: 6.25 : 1
   'Natural speed' for length: 17.32 kts
   Power going to wave formation at top speed: 59 %
   Trim (Max stability = 0, Max steadiness = 100): 57
   Bow angle (Positive = bow angles forward): 0.00 degrees
   Stern overhang: 0.00 ft / 0.00 m
   Freeboard (% = measuring location as a percentage of overall length):
      - Stem:      16.50 ft / 5.03 m
      - Forecastle (25 %):   16.50 ft / 5.03 m (10.50 ft / 3.20 m aft of break)
      - Mid (50 %):      10.50 ft / 3.20 m
      - Quarterdeck (15 %):   10.50 ft / 3.20 m
      - Stern:      10.50 ft / 3.20 m
      - Average freeboard:   12.00 ft / 3.66 m
   Ship tends to be wet forward

Ship space, strength and comments:
   Space   - Hull below water (magazines/engines, low = better): 168.4 %
      - Above water (accommodation/working, high = better): 56.6 %
   Waterplane Area: 10,068 Square feet or 935 Square metres
   Displacement factor (Displacement / loading): 89 %
   Structure weight / hull surface area: 76 lbs/sq ft or 373 Kg/sq metre
   Hull strength (Relative):
      - Cross-sectional: 0.90
      - Longitudinal: 2.43
      - Overall: 1.00
   Hull space for machinery, storage, compartmentation is cramped
   Room for accommodation and workspaces is cramped
"All treaties between great states cease to be binding when they come in conflict with the struggle for existence."
Otto von Bismarck

"Give me a woman who loves beer and I will conquer the world."
Kaiser Wilhelm

"If stupidity were painfull I would be deaf from all the screaming." Sam A. Grim

RAM

#5
Toreador, NUS Light Cruiser laid down 1913 (Engine 1912)



Displacement:
   4.602 t light; 4.811 t standard; 5.388 t normal; 5.850 t full load

Dimensions: Length overall / water x beam x draught
   393,00 ft / 393,00 ft x 56,00 ft x 18,00 ft (normal load)
   119,79 m / 119,79 m x 17,07 m  x 5,49 m

Armament:
     5 - 6,00" / 152 mm guns in single mounts, 100,00lbs / 45,36kg shells, 1905 Model
     Breech loading guns in deck mounts with hoists
     on centreline, evenly spread, 3 raised mounts
     6 - 4,00" / 102 mm guns in single mounts, 30,00lbs / 13,61kg shells, 1906 Model
     Quick firing guns in deck mounts
     on side, evenly spread
     4 - 1,00" / 25,4 mm guns in single mounts, 0,50lbs / 0,23kg shells, 1902 Model
     Machine guns in deck mounts
     on centreline ends, evenly spread, all raised mounts - superfiring
   Weight of broadside 682 lbs / 309 kg
   Shells per gun, main battery: 250
   6 - 18,0" / 457,2 mm above water torpedoes

Armour:
  - Belts:      Width (max)   Length (avg)      Height (avg)
   Main:   4,00" / 102 mm   272,00 ft / 82,91 m   13,00 ft / 3,96 m
   Ends:   Unarmoured
     Main Belt covers 106 % of normal length

  - Gun armour:   Face (max)   Other gunhouse (avg)   Barbette/hoist (max)
   Main:   2,00" / 51 mm         -         1,00" / 25 mm
   2nd:   1,00" / 25 mm         -               -

  - Armour deck: 1,50" / 38 mm, Conning tower: 6,00" / 152 mm

Machinery:
   Oil fired boilers, steam turbines,
   Electric motors, 2 shafts, 35.865 shp / 26.755 Kw = 27,00 kts
   Range 7.250nm at 12,00 kts
   Bunker at max displacement = 1.039 tons

Complement:
   313 - 408

Cost:
   £0,478 million / $1,913 million

Distribution of weights at normal displacement:
   Armament: 92 tons, 1,7 %
   Armour: 1.086 tons, 20,2 %
      - Belts: 599 tons, 11,1 %
      - Torpedo bulkhead: 0 tons, 0,0 %
      - Armament: 49 tons, 0,9 %
      - Armour Deck: 398 tons, 7,4 %
      - Conning Tower: 40 tons, 0,7 %
   Machinery: 1.430 tons, 26,5 %
   Hull, fittings & equipment: 1.832 tons, 34,0 %
   Fuel, ammunition & stores: 786 tons, 14,6 %
   Miscellaneous weights: 162 tons, 3,0 %

Overall survivability and seakeeping ability:
   Survivability (Non-critical penetrating hits needed to sink ship):
     6.065 lbs / 2.751 Kg = 56,2 x 6,0 " / 152 mm shells or 1,2 torpedoes
   Stability (Unstable if below 1.00): 1,19
   Metacentric height 2,9 ft / 0,9 m
   Roll period: 13,9 seconds
   Steadiness   - As gun platform (Average = 50 %): 70 %
         - Recoil effect (Restricted arc if above 1.00): 0,22
   Seaboat quality  (Average = 1.00): 1,11

Hull form characteristics:
   Hull has raised forecastle
   Block coefficient: 0,476
   Length to Beam Ratio: 7,02 : 1
   'Natural speed' for length: 19,82 kts
   Power going to wave formation at top speed: 62 %
   Trim (Max stability = 0, Max steadiness = 100): 63
   Bow angle (Positive = bow angles forward): -6,00 degrees
   Stern overhang: -2,00 ft / -0,61 m
   Freeboard (% = measuring location as a percentage of overall length):
      - Stem:      24,00 ft / 7,32 m
      - Forecastle (22 %):   24,00 ft / 7,32 m (16,00 ft / 4,88 m aft of break)
      - Mid (50 %):      16,00 ft / 4,88 m
      - Quarterdeck (15 %):   16,00 ft / 4,88 m
      - Stern:      16,00 ft / 4,88 m
      - Average freeboard:   17,73 ft / 5,40 m

Ship space, strength and comments:
   Space   - Hull below water (magazines/engines, low = better): 103,6 %
      - Above water (accommodation/working, high = better): 120,5 %
   Waterplane Area: 14.352 Square feet or 1.333 Square metres
   Displacement factor (Displacement / loading): 111 %
   Structure weight / hull surface area: 81 lbs/sq ft or 394 Kg/sq metre
   Hull strength (Relative):
      - Cross-sectional: 0,91
      - Longitudinal: 2,27
      - Overall: 1,00
   Hull space for machinery, storage, compartmentation is adequate
   Room for accommodation and workspaces is excellent
   Ship has slow, easy roll, a good, steady gun platform

100t F/C
25t Reserve weight for future growth
25t W/T
12t Torpedoes
